PRODUCTS

Multi-Limb Vacuum Receiver

Specifications

Material : Schott Duran Germany and Iwaki Pyrex

Borosilicate glass 3.3

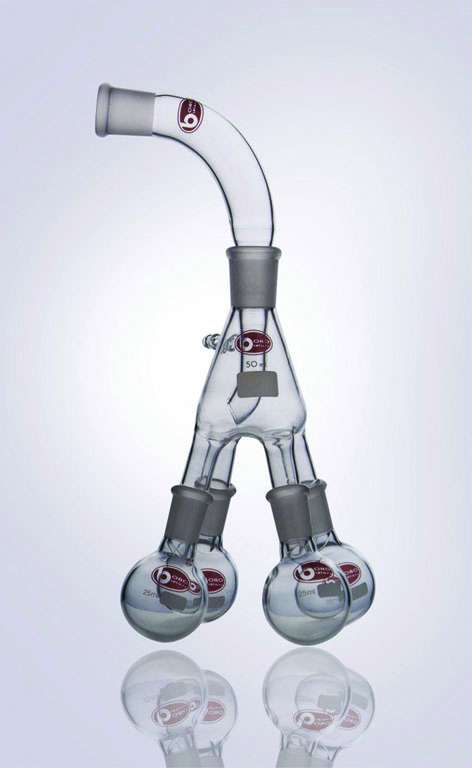

Rotating vacuum distillation receiver allows four flasks to be progressively filled without disturbing the vacuum within the system.When assembled with delivery adapter AR10.22V or AR10.22S,the receiver adapter can be rotated at the conical joint (when suitably lubricated).In this way, distillate passing through the delivery adapter can be diverted,in turn into four collection flask (available separately).

Cat. No.	Description	Socket Size	Cone Size
AR10.21	Vacuum receiver adapter to take four flask	19/26	14/23
AR10.22V	Vertical delivery adapter	19/26	19/26
AR10.22S	Sloping delivery adapter	19/26	19/26
AR10.1/25	25ml	14/23	–
AR10.1/50	50ml	14/23	–
AR10.1/100	100ml	14/23	–
