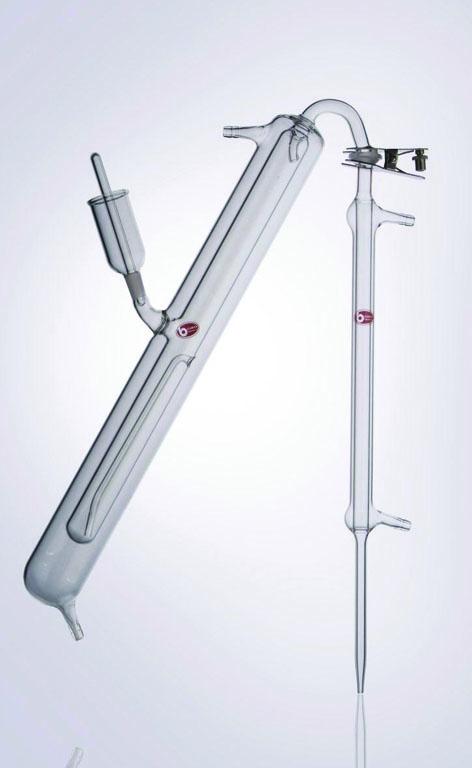

Markham Distillation Unit

Specifications

Material : Schott Duran Germany & Iwaki Pyrex Japan

Borosilicate glass

This still has the evaporator vessel enclosed in a combined steam jacket and trap; an arrangement which is compact and accelerates distillation. For ease of assembly and storage, it is fitted with a spherial ground glass joint between the distillation vessel and condenser. When the supply of stem to the distillation is cut off, the apparatus automatically sucks back, thus immediately preparing itself for the determination. This apparatus enables a large number of distillations to be carried out in rapid sucession. Manufactured with screwthread outlets and supplies with plastic safety connectors. The apparatus complies with British Standard 1428: Part B2.

Cat. No.	Description	Spherical Joint Size
DAM 46	Complete Assembly	–
	Components :
JC19	Spherical Joint Clip	–
MC1/F19	Condenser, 1.0 x 10^-2 m² surface area	S19
MC46/SC	Markham still body 25ml capacity	S19
