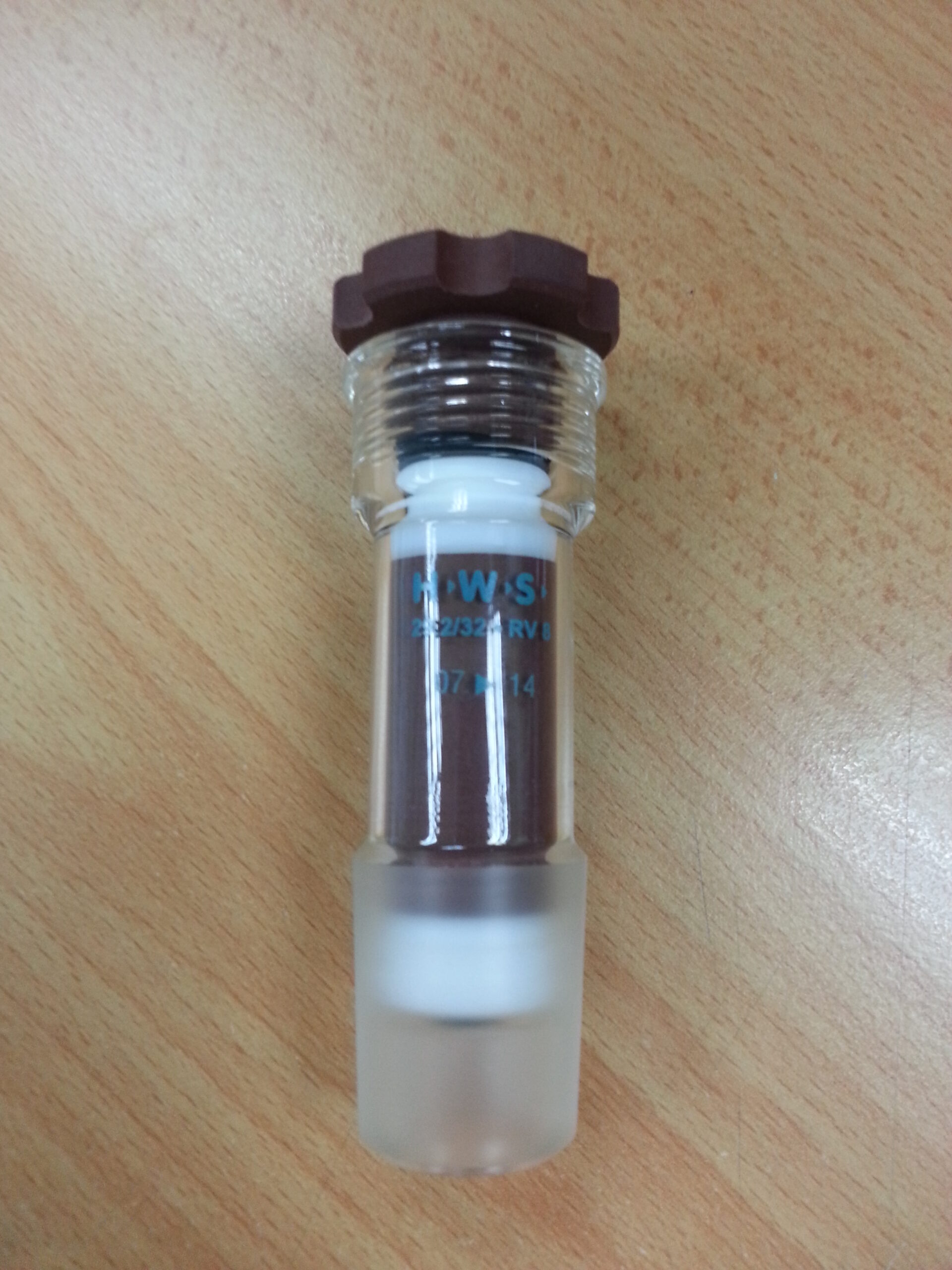

Dynamic Seal Stirrer

Specifications

Notes for use

¦

Pressure screw should be

tightened (not too much)

after insertion of the shaft

¦

shaft and seals should be

cleaned before use

¦

A minor abrasion of the seals

ix compensated by the perma-

nent pressure of the Viton

Quad-ring

¦

However check and exchange

the seals in time, if you notice

a serious deformation

¦

The HWS stirrer guide can

be used to a certain extent for

pressure and vacuum use

(see correct placement of

the seals in examples)

If low pressure is used a

clamping of the joint has to

be carried out

shaft-Ø	joint		length(built in)	ref.-no.
mm	NS		mm
8	29/32		75	3 776 029
8	45/40		105	3 776 045
10*	29/32		75	3 776 129
10*	45/40		105	3 776 145
14	29/32		105	3 776 170
14	45/40		105	3 776 175
16	29/32		105	3 776 229
16	45/40		105	3 776 245
