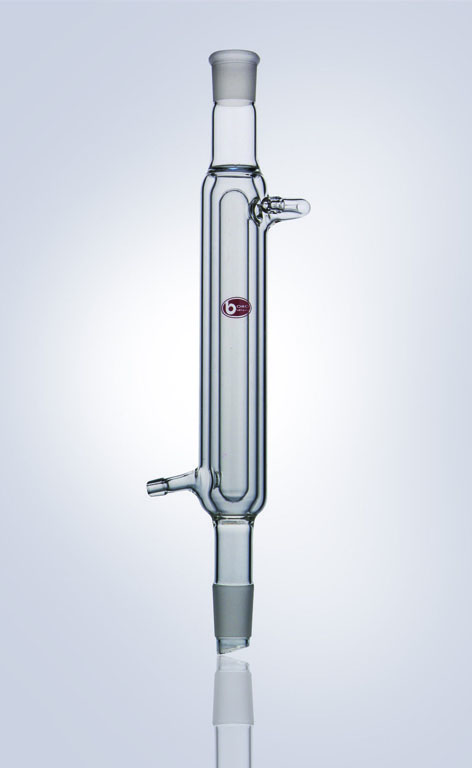

Double-Surface (Davies) Condensers

Specifications

Material : Schott Duran Germany and Iwaki Pyrex Japan

Borosilicate glass 3.3

Increased surface area and effectiveness compared with a corresponding Liebig condenser is due to hte inner cooling surface which gives a ‘baffling’ effect,and the outer cooling surface area which prevents ‘creep’ and loss of vapour when low boiling point liquids are involved.

Cat. No.	Socket Size	Cone Size	Approx.Effective Length (mm)	Approx.Overall Length (mm)
C06.11/160	14/23	14/23	160	275
C06.22/160	19/26	19/26	160	295
C06.33/200	24/29	24/29	160	300
C06.22/200	19/26	19/26	200	340
C06.33/200	24/29	24/29	200	345
C06.44/205	29/32	29/32	205	365
C06.X3/205	–	24/29	205	350
C06.X5/205	–	34/35	205	360
